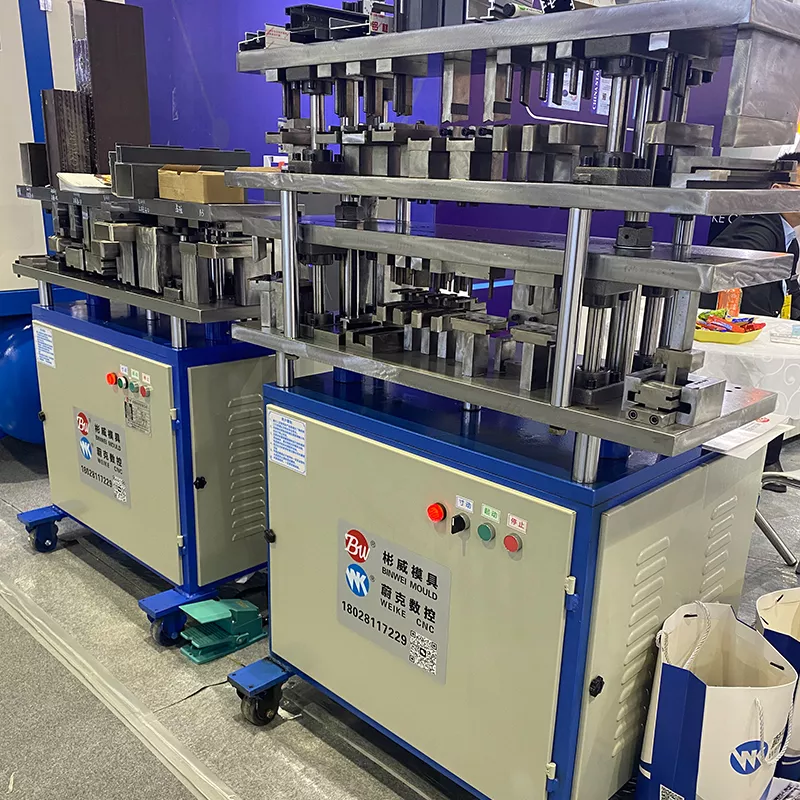

Hydraulic aluminum profile punching machine

Product characteristics
✅ High precision punching: hydraulic drive, punching accuracy of ±0.1mm, to ensure the same hole position, suitable for high requirements of industrial processing.
✅ Efficient production: single stamping molding, 3-5 times higher than the traditional drilling efficiency, suitable for mass production.
✅ porous position adjustable: the mold can be quickly replaced, support round hole, square hole, shaped hole and other holes, to meet different processing needs.
✅ Stable and durable: high quality steel mold, heat treatment process, long life, suitable for high strength continuous operation.
✅ Intelligent control: PLC+ touch screen operation, preset punching position, number, high degree of automation, reduce manual error.
✅ Safe and reliable: equipped with two-hand operation button, emergency stop device and protective cover, in line with international safety standards (CE certification).

Technical parameter
Item parameter
Maximum punching capacity aluminum profile thickness ≤10mm, maximum aperture Φ30mm
Table size 1000mm × 600mm (can be customized lengthened)
Hydraulic system pressure 20MPa (adjustable)
Motor power 3kW / 380V (suitable for 220V)
Punching speed 10-15 times/min (depending on the groove adjustment)
The weight of the equipment is about 850kg
Overall dimensions (L×W×H) 1500mm × 800mm × 1800mm
Application industry
🔹 Construction industry: door and window aluminum profiles, curtain wall frame punching
🔹 Industrial manufacturing: automatic equipment aluminum profile, conveyor line support processing
🔹 Automotive industry: new energy vehicle battery frame, body structure parts
🔹 Furniture industry: Aluminum alloy furniture, display frame punching
🔹 Electronic and electrical: radiator, chassis processing

Why choose our hydraulic punch?
✔ Customized service: can adjust the mold, travel, control system according to customer needs.
✔ Global export experience: The equipment conforms to CE and ISO standards, and supports OEM/ODM cooperation.
✔ After-sales support: Provide installation guidance, operation training, 24 hours online technical support.
✔ Cost-effective: Compared with European and American brands, the price of the same performance equipment is more competitive.
