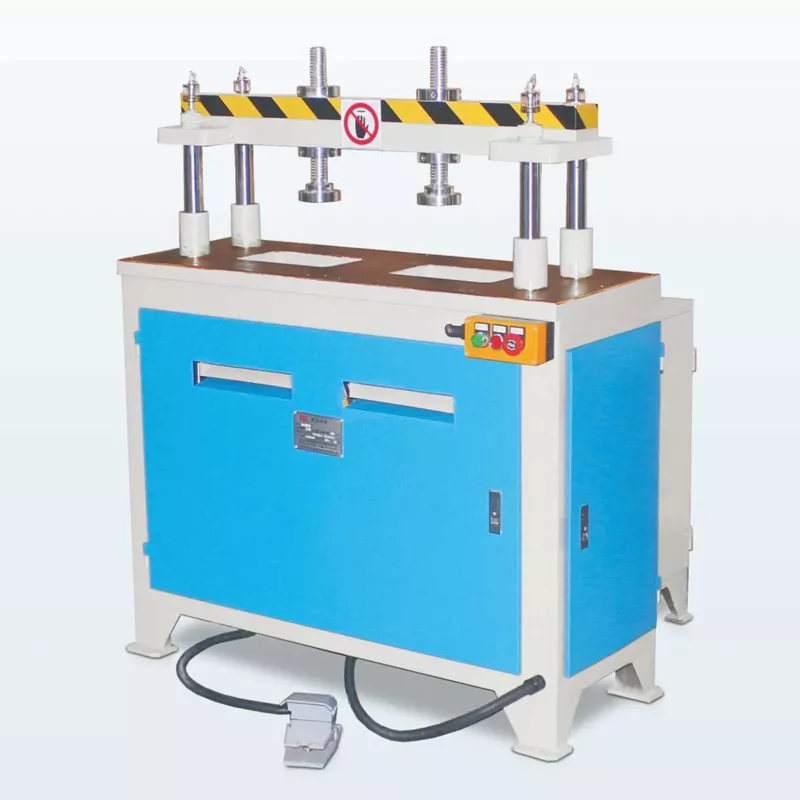

Four column hydraulic press

It is mainly suitable for single mold and combination mold matching with various aluminum alloy doors, Windows, curtain walls and other profiles; The machine uses four guide pillars as guidance, and a parallel shaft is added in the process of the hydraulic cylinder driving the four guide pillars, so that the press is more synchronous and parallel in the work. In this way, it completely eliminates the phenomenon of mold jitter, stuck material, broken knife and so on, which often occur on similar models in the past due to the imbalance of mold or punching position and uneven force. The machine has a larger stroke and greater impact capacity, good impact stability, high efficiency, low noise, no pollution, high precision, fast, simple, safe and reliable mold replacement.

Main Technical Parameters:

Weight of machine：480kg
Overall Dimension：1100mm×800mm×1400mm
Maximum punching stroke：90mm
Effective table size：810mm×300mm
Maximum height closed：330mm
Punching thickness：1～2.5mm
Fuel tank capacity：40L
The maximum momentum：8T
Diameter of oil cylinder：￠80mm
Pump rated pressure：16Mpa
Motor Power：2.2kw
Working voltage：380V 50Hz
