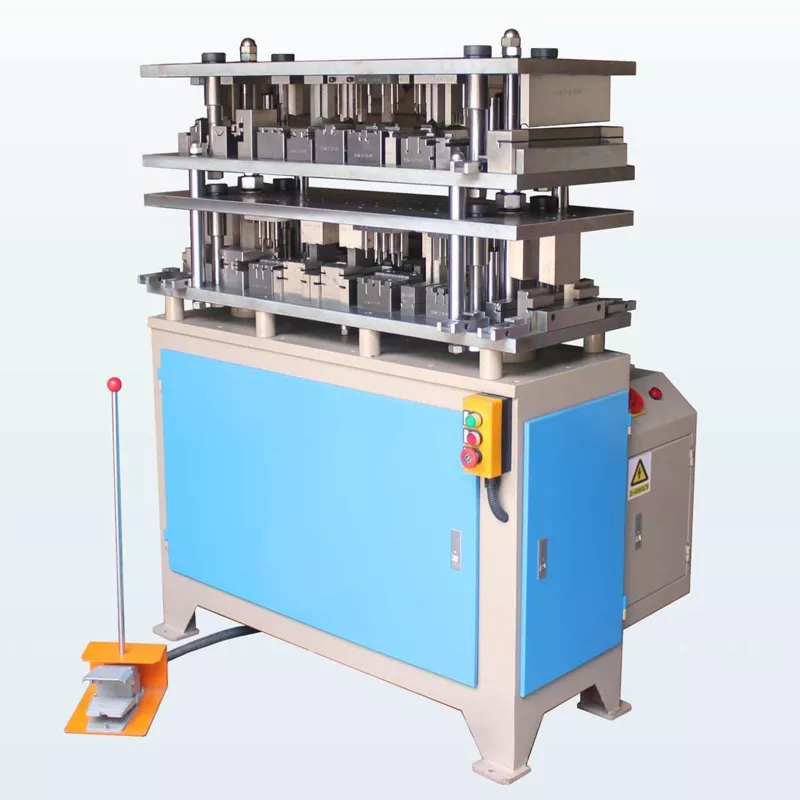

Hydraulic mold machine

It is mainly used for stamping the holes, slots and notches of various aluminum alloy doors and Windows and curtain wall profiles. Combined design, can be a series of aluminum profile mold assembly to a mold machine, to achieve a series of machines, a series of profiles, a machine to finish the machine; The transmission mode adopts the hydraulic system as the transmission, and the hydraulic cylinder drives the tension rod of the mold. The tension rod adopts two guide pillars as the guide, and a parallel shaft is added in the process of the hydraulic cylinder driving the two guide pillars. The mold structure is matched with a precision guide column. The guide column is treated with high temperature and fine grinding to make the transmission parts of the mold stable and reduce wear, so as to ensure the long-term coordination accuracy between the upper and lower molds during work, so as to make the molds more synchronous and parallel in the work. In this way, it completely eliminates the phenomenon of mold shaking, stuck material, broken knife and so on, which often occur on similar models in the past due to the imbalance of mold or punch load position and uneven force. It has a larger load stroke and a larger load capacity, good stability, high efficiency, low noise, no pollution, high precision, easy to operate, fast, safe and reliable!

Main Technical Parameters:

Weight of machine：200kg
Overall Dimension：640mm×420mm×1600mm
Maximum punching stroke：90mm
Effective table size：440mm×350mm
Maximum height closed：300mm
Punching thickness：1～2.5mm
Fuel tank capacity：30L
The maximum momentum：5T
Diameter of oil cylinder：￠63mm
Pump rated pressure：10Mpa
Motor Power：1.5kw
Working voltage：380V 50Hz
