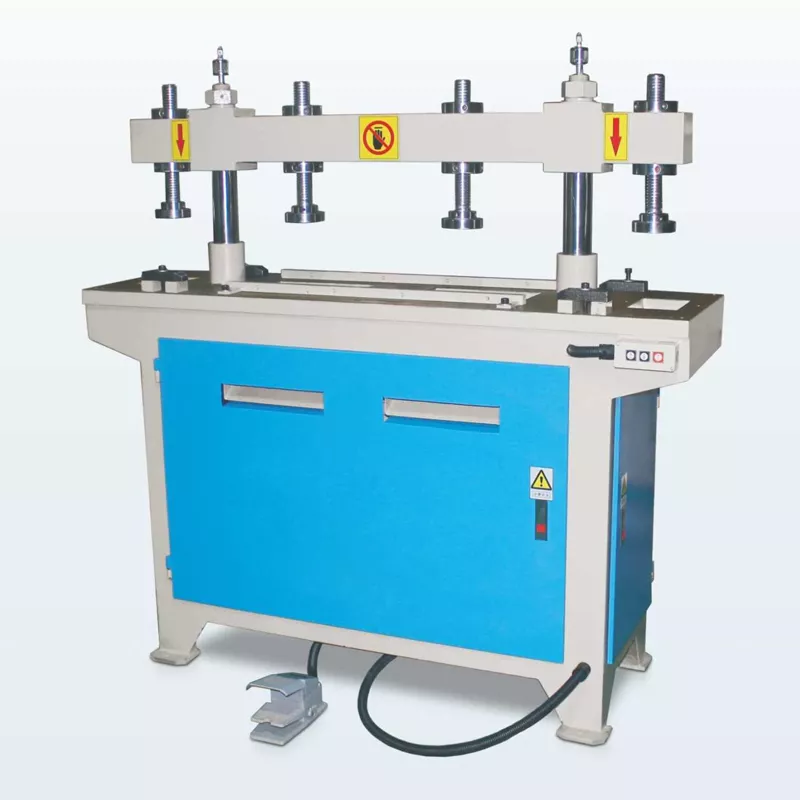

Multi-functional two-column hydraulic press

It is mainly suitable for single mold and combination mold matching with various aluminum alloy doors, Windows, curtain walls and other profiles; The machine uses four guide pillars as guidance, and a parallel shaft is added in the process of the hydraulic cylinder driving the four guide pillars, so that the press is more synchronous and parallel in the work. In this way, it completely eliminates the phenomenon of mold jitter, stuck material, broken knife and so on, which often occur on similar models in the past due to the imbalance of mold or punching position and uneven force. The multi-functional hydraulic punching machine has two more punching positions than the general punching machine on both sides, and some relatively small molds can be placed on both sides, so that there is no need to change the mold frequently, and a series of profiles can be washed on a punching machine; The machine has a larger load stroke and greater load capacity, good load stability, high efficiency, low noise, no pollution, high precision, fast, simple, safe and reliable mold replacement.

Main Technical Parameters:

Weight of machine：570kg
Overall Dimension：1400mm×800mm×1400mm
Maximum punching stroke：90mm
Effective table size：780mm×300mm×1/300mm×240mm×2
Maximum height closed：330mm
Punching thickness：1～2.5mm
Fuel tank capacity：40L
The maximum momentum：8T
Diameter of oil cylinder：￠80mm
Pump rated pressure：16Mpa
Motor Power：2.2kw
Working voltage：380V 50Hz
