Lightweight two-column hydraulic press
Latest News

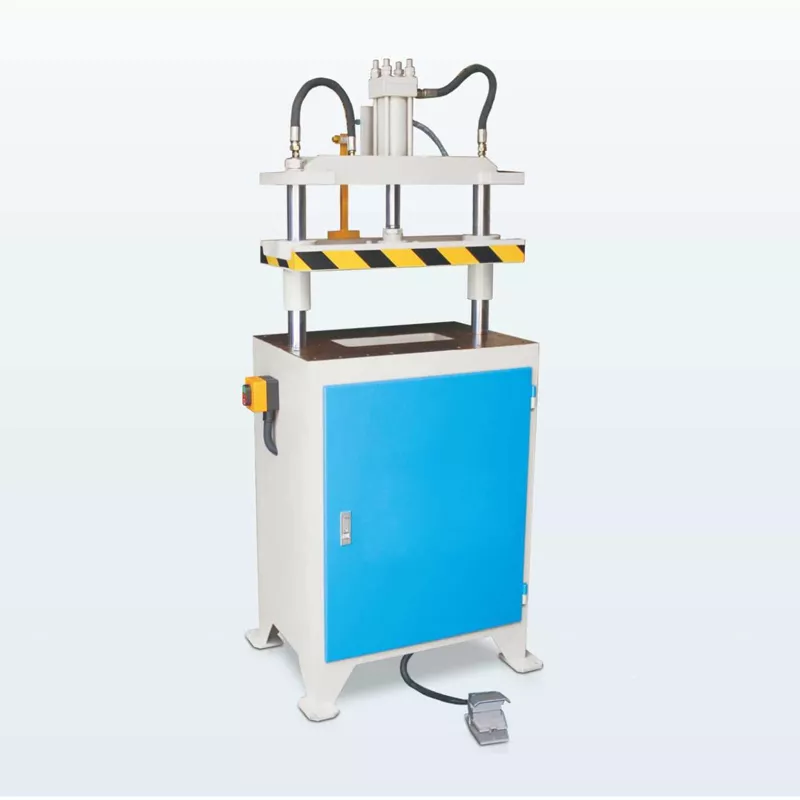

Lightweight hydraulic punching machine is suitable for use with small aluminum alloy doors, Windows, curtain walls and other profiles of single mold, combination mold; The punching machine is small in size, occupies a small space area, and adopts ￠63 cylinder loading speed; The machine uses two guide columns as guidance, the pressure plate and guide column are directly connected, so that the loading stability is good, the noise is small, the replacement of the mold is fast, simple, safe and reliable!
Main Technical Parameters:
Weight of machine：200kg
Overall Dimension：640mm×420mm×1600mm
Maximum punching stroke：90mm
Effective table size：440mm×350mm
Maximum height closed：300mm
Punching thickness：1～2.5mm
Fuel tank capacity：30L
The maximum momentum：5T
Diameter of oil cylinder：￠63mm
Pump rated pressure：10Mpa
Motor Power：1.5kw
Working voltage：380V 50Hz
