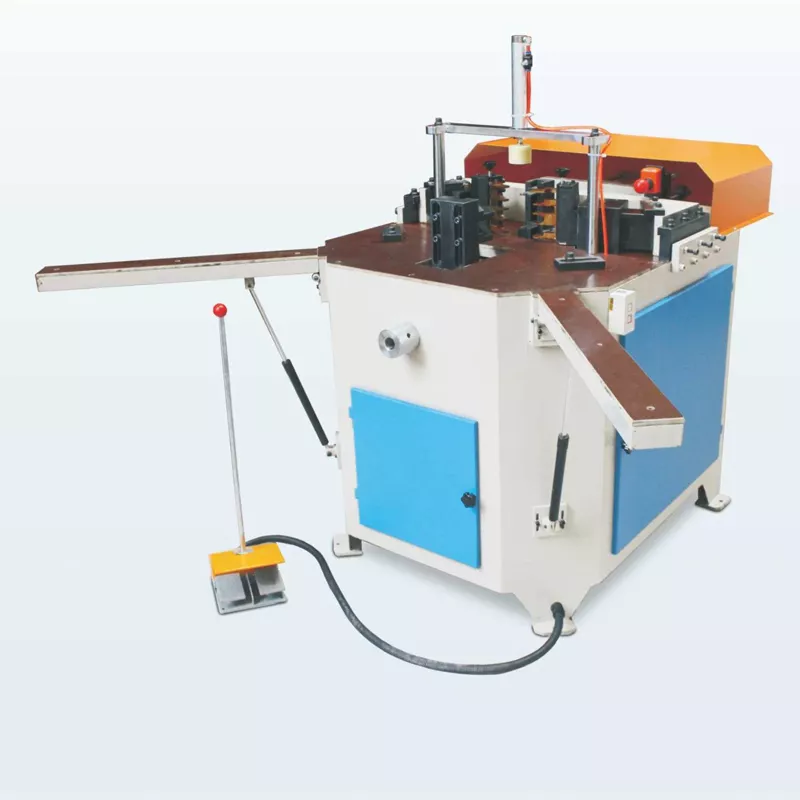

Heavy duty multi-function Angle bumping machine
Latest News
This machine is mainly suitable for most aluminum alloy door and window group corner processing; The power is driven by hydraulic system, which is stable, safe and reliable. The convenient, fast and intuitive position adjustment method is adopted to make the debugging in one step. When working, the two sides of the fork are simultaneously feeding, avoiding the accidental deformation in the process of Angle formation, so that the spangled Angle is smooth and firm.
Main Technical Parameters:
Weight of machine：650kg
Overall Dimension：1760mm×1650mm×1400mm
Diameter of oil cylinder：￠80mm
Maximum working stroke：80mm
Pump rated pressure：16Mpa
Fuel tank capacity：40L
Fork is adjustable height：145mm
Group box minimum size：300mm×300mm
Motor Power：3.75kw
Working voltage：380V 50Hz
Working pressure：0.6～0.8Mpa
Optional device：General tool
